Description

SW-4000Q-SFP

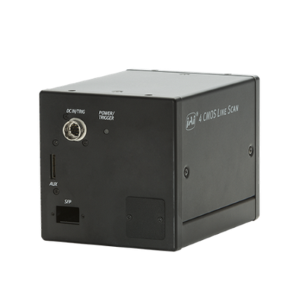

The SW-4000Q-SFP is a 4-CMOS prism-based industrial RGB/NIR color line scan camera with four separate sensors for simultaneously capturing red, green, blue and near infrared spectral wavebands. Besides delivering supreme RGB color data, the NIR image makes it possible to identify an even wider set of defects on inspected objects. The camera has 4,096 pixels per line and a fast, 72 kHz line rate. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color/NIR imaging applications. The camera runs on a 10 Gigabit Ethernet network configuration and features the enhanced Small Form-factor Pluggable optical interface (SFP+).

Specifications

Product Line: Sweep+ Series

Model: SW-4000Q-SFP

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible + NIR

Resolution: N/A

Resolution WxH: 4096 x 1 px

Frame rate / Line rate: 72 kHz

ROI: Yes

Interface: SFP+ over 10 Gigabit Ethernet

Sensors: 4xCMOS RGB/NIR

Sensor Name: Custom

Optical Format: 30.72 mm

Cell Size WxH: 7.5 x 7.5 µm or 7.5 x 10.5 µm

Shutter type: Global shutter

Sensor Diagonal: 30.8 mm

Active Sensor Dimensions WxH: 30.8 mm

Camera Dimensions HxWxL: 90 x 90 x 120 mm

Weight: 980 g

Video Output: 8/10-bit

Lens Mount: F-mount or M52-mount

Power Consumption: 17.40 Watt

Operating Temperature (ambient): -5°C to +45°C
