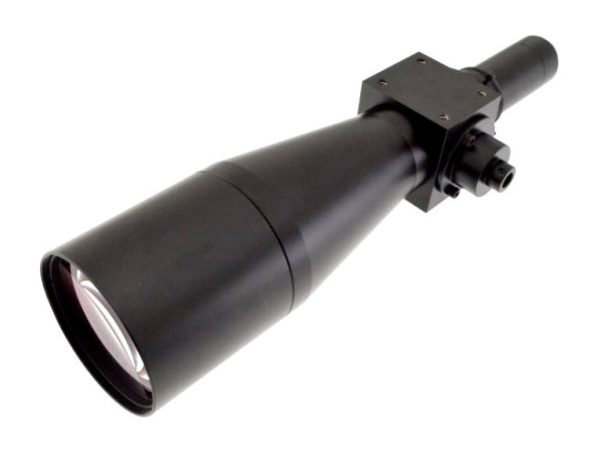

RT-TCL0200-F – Opto Engineering Telecentric Lens
Fiyat için teklif alın
B2B ürünlerimizde güncel fiyat ve stok bilgisi için teklif talep edin — aynı gün dönüş yapıyoruz.
0.200x High magnification telecentric lens with built-in coaxial illumination for detectors up to 2/3″, WD 167.0 mm
Detaylar
Teknik Özellikler
| Main optical specifications | ||
| Magnification | (x) | 0.200 |
| Image circle diameter | (mm) | 11.0 |
| Max sensor size | 2/3″ | |
| Object field of view | ||
| 1/3” - 4.80 x 3.60 | (mm × mm) | 24.00 x 18.00 |
| 1/2.5” - 5.70 x 4.28 | (mm × mm) | 28.50 x 21.40 |
| 1/2” - 6.40 x 4.80 | (mm × mm) | 32.00 x 24.00 |
| 1/1.8” - 7.13 x 5.33 | (mm × mm) | 35.65 x 26.65 |
| 2/3” - 8.50 x 7.09 | (mm × mm) | 42.50 x 35.45 |
| Advanced optical specifications | ||
| Working distance (1) | (mm) | 167.0 |
| Working ƒ/N (2) | 8-40 | |
| Distortion | (%) | < 0.03 |
| Depth of field | (mm) | 7.10 |
| Resolution | (μm) | 26.8 |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment | No | |
| Length (3) | (mm) | 297.2 |
| Front diameter | (mm) | 68.0 |
| Mass | (g) | 793 |
Last update 26 Jan 2024
Notes
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Measured from the front end of the mechanics to the camera flange.
