TC12M048-J – Opto Engineering Telecentric Lens
Fiyat için teklif alın
B2B ürünlerimizde güncel fiyat ve stok bilgisi için teklif talep edin — aynı gün dönüş yapıyoruz.

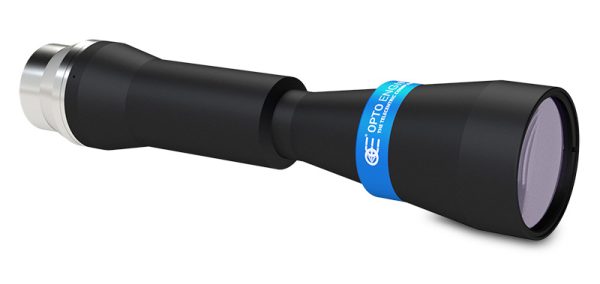

High resolution telecentric lens, magnification 0.635x, WD 131.1 mm, M42x1 FD 12 mount
Detaylar
Teknik Özellikler
| Main optical specifications | ||
| Magnification | (x) | 0.635 |
| Image circle diameter | (mm) | 33.5 |
| Max sensor size | APS-H | |
| Object field of view | ||
| PYTHON 16K - 18.43 x 18.43 | (mm × mm) | 29.03 x 29.03 |
| APS-C IMX342 - 22.36 x 16.77 | (mm × mm) | 35.21 x 26.41 |
| Line 4k-7µm - 28.67 | (mm) | 45.15 |
| APS-H PYTHON 25K - 23.04 x 23.04 | (mm × mm) | 36.28 x 36.28 |
| Advanced optical specifications | ||
| Working distance (1) | (mm) | 131.1 |
| Working ƒ/N (2) | 12 | |
| Telecentricity typical (max) (3) | (deg) | <0.08 (0.10) |
| Distortion typical (max) (4) | (%) | <0.08 (0.10) |
| Depth of field (5) | (mm) | 2.50 |
| Resolution (6) | (μm) | 12 |
| Mechanical specifications | ||
| Mount (7) | M42x1 FD 12 | |
| Phase adjustment (8) | Yes | |
| Length (9) | (mm) | 327.2 |
| Front diameter | (mm) | 75 |
| Mass | (g) | 1291 |
Last update 26 Aug 2025
Notes
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 5.5 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- FD stands for Flange Distance (in mm), defined as the distance from the mounting flange (the “metal ring” in rear part of the lens) to the camera detector plane.
- Indicates the availability of an integrated camera phase adjustment feature.
- Measured from the front end of the mechanics to the camera flange.
