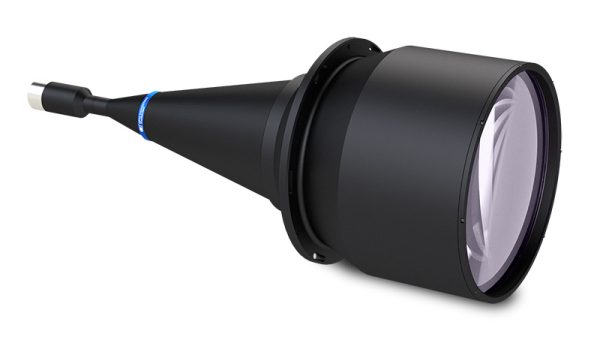

TC16M308-K – Opto Engineering Telecentric Lens
Fiyat için teklif alın
B2B ürünlerimizde güncel fiyat ve stok bilgisi için teklif talep edin — aynı gün dönüş yapıyoruz.
Telecentric lens for 35 mm Full Frame sensors, magnification 0.116x, mount M58x0.75 FD 12.96
Detaylar
Teknik Özellikler
| Main optical specifications | ||
| Magnification | (x) | 0.116 |
| Image circle diameter | (mm) | 43.3 |
| Max sensor size | 35 mm Full Frame | |
| Object field of view | ||
| APS-C IMX342 - 22.36 x 16.77 | (mm × mm) | 192.76 x 144.57 |
| CHR70M - 31.00 x 21.99 | (mm × mm) | 267.24 x 189.58 |
| Line 8k-5µm - 40.80 | mm | 351.72 |
| Full Frame - 36.00 x 24.00 | (mm × mm) | 310.34 x 206.90 |
| CMV50000 - 36.43 x 27.62 | (mm × mm) | 314.07 x 238.09 |
| Advanced optical specifications | ||
| Working distance (1) | (mm) | 500.0 |
| Working ƒ/N (2) | 8 | |
| Telecentricity typical (max) (3) | (deg) | < 0.10 (0.15) |
| Distortion typical (max) (4) | (%) | < 0.10 (0.15) |
| Depth of field (5) | (mm) | 49.00 |
| Resolution (6) | (μm) | 44 |
| Mechanical specifications | ||
| Mount (7) | M58x0.75 FD 12.96 | |
| Phase adjustment (8) | Yes | |
| Length (9) | (mm) | 1062.4 |
| Front diameter | (mm) | 417 |
| Mass | (g) | 39250 |
Last update 26 Aug 2025
Notes
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 5.5 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- FD stands for Flange Distance (in mm), defined as the distance from the mounting flange (the “metal ring” in rear part of the lens) to the camera detector plane.
- Indicates the availability of an integrated camera phase adjustment feature.
- Measured from the front end of the mechanics to the camera flange.
