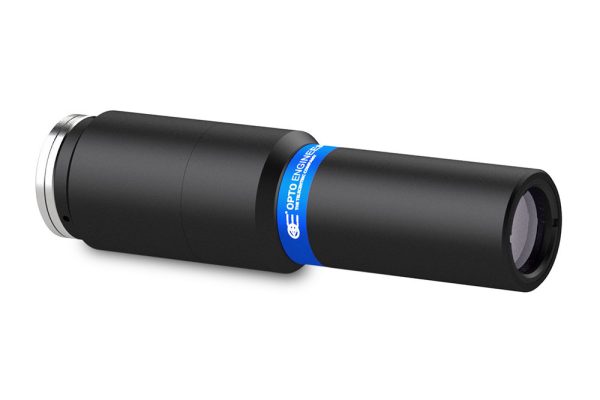

High resolution telecentric lens for 4/3″ sensors, magnification 1.054x, C mount
Detaylar
Teknik Özellikler
| Main optical specifications | ||
| Magnification | (x) | 1.054 |
| Image circle diameter | (mm) | 22.0 |
| Max sensor size | 4/3″ | |
| Object field of view | ||
| 1" - 14.19 x 7.51 | (mm × mm) | 13.46 x 7.13 |
| 1.1″ - 14.16 x 10.37 | (mm × mm) | 13.43 x 9.84 |
| 4/3″ - 18.93 x 10.61(1) | (mm × mm) | 17.96 x 10.07 |
| Advanced optical specifications | ||
| Working distance (2) | (mm) | 43.1 |
| Working ƒ/N (3) | 16 | |
| Telecentricity typical (max) (4) | (deg) | <0.07 (0.10) |
| Distortion typical (max) (5) | (%) | <0.05 (0.10) |
| Depth of field (6) | (mm) | 0.70 |
| Resolution (7) | (μm) | 10 |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment (8) | Yes | |
| Length (9) | (mm) | 169.2 |
| Front diameter | (mm) | 37.7 |
| Mass | (g) | 398 |
Last update 26 Aug 2025
Notes
- With IMX387 (21.7 mm diagonal) sensors, the FOV may show some vignetting at the image corners.
- Working distance: distance between the front end of the mechanics and the object. Set this distance within +/- 3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- Indicates the availability of an integrated camera phase adjustment feature.
- Measured from the front end of the mechanics to the camera flange.
