Description

SP-12400M-PMCL

The SP-12400M-PMCL provides 12-megapixel color resolution at up to 64.6 fps over a Camera Link interface. Featuring the Sony Pregius IMX253 CMOS imager, it delivers outstanding low-noise image quality suitable for a wide range of high resolution machine vision applications.

Specifications

Product Line: Spark Series

Model: SP-12400M-PMCL

Type: Area Scan

Color / Mono: Mono

Light Spectrum: Visible

Resolution: 12.4 MP

Resolution WxH: 4112 x 3008 px

Frame rate / Line rate: 64 fps

ROI: Yes

Interface: Mini Camera Link (PoCL)

Sensors: 1XCMOS

Sensor Name: IMX253

Optical Format: 1.1 inch

Cell Size WxH: 3.45 x 3.45 µm

Shutter type: Global shutter

Sensor Diagonal: 17.6 mm

Active Sensor Dimensions WxH: 14.2 x 10.4 mm

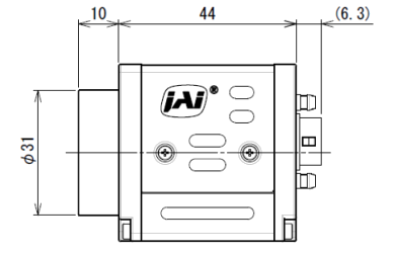

Camera Dimensions HxWxL: 44 x 44 x 44 mm

Weight: 135 g

Video Output: 8/10/12-bit *

Lens Mount: C-mount

Power Consumption: 5.10 Watt

Operating Temperature (ambient): -5°C to +45°C

* Some video processing functions not available with 12-bit output
