Description

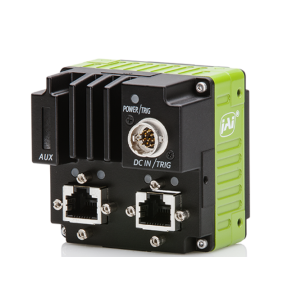

SP-5000C-GE2

The SP-5000C-GE2 provides 5-megapixel color GigE Vision output at up to 44 fps, thanks to a two-channel Link Aggregation Group (LAG) interface. 5-micron square pixels provide excellent sensitivity while flexible ROI capabilities enable the camera to be tailored to a wide range of high performance applications.

Specifications

Product Line: Spark Series

Model: SP-5000C-GE2

Type: Area Scan

Color / Mono: Color

Light Spectrum: Visible

Resolution: 5.0 MP

Resolution WxH: 2560 x 2048 px

Frame rate / Line rate: 44 fps

ROI: Yes

Interface: GigE Vision LAG 2-cables

Sensors: 1XCMOS

Sensor Name: Lince5M

Optical Format: 1 inch

Cell Size WxH: 5.0 x 5.0 µm

Shutter type: Global shutter

Sensor Diagonal: 16.4 mm

Active Sensor Dimensions WxH :12.8 x 10.2 mm

Camera Dimensions HxWxL: 62 x 62 x 55.5 mm

Weight: 215 g

Video Output: 8/10/12-bit (RGB/YUV)

Lens Mount: C-mount

Power Consumption: 6.25 Watt

Operating Temperature (ambient): -45°C to +70°C
