Description

LQ-401-CL

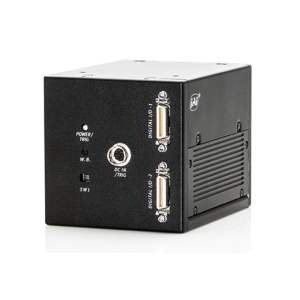

The LQ-401CL is a prism-based industrial RGB/NIR color line scan camera with four separate imagers for simultaneously capturing red, green, blue and near infrared light. Besides delivering supreme RGB color data, the NIR image makes it possible to identify an even wider set of defects on inspected objects.

Specifications

Product Line: Sweep+ Series

Model: LQ-401-CL

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible + NIR

Resolution: N/A

Resolution WxH: 4096 x 1 px

Frame rate / Line rate: 18 kHz

ROI: N/A

Interface: Camera Link

Sensors: 4xCMOS RGB/NIR

Sensor Name: N/A

Optical Format: 28.67 mm

Cell Size WxH: 7.0 x 7.0 µm

Shutter type: Global shutter

Sensor Diagonal: 28.7 mm

Active Sensor Dimensions WxH: 28.7 mm

Camera Dimensions HxWxL: 90 x 90 x 120 mm

Weight: 1050 g

Video Output: 8/10-bit

Lens Mount: F-mount or M52-mount

Power Consumption: 9.00 Watt

Operating Temperature (ambient): -5°C to +45°C
