Description

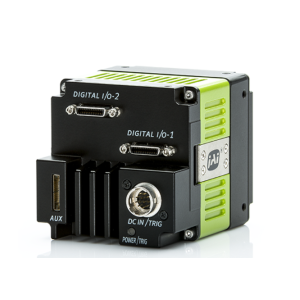

SW-4000TL-PMCL

The SW-4000TL-PMCL is a high speed trilinear line scan camera that delivers outstanding color line scan performance for applications that don’t require the ultimate precision provided by the prism technology in JAI’s Sweep+ Series. Featuring a maximum line rate of 66 kHz for 24-bit RGB output, it is one of the fastest 3 x 4096 color line scan cameras on the market.

Specifications

Product Line: Sweep Series

Model: SW-4000TL-PMCL

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible

Resolution: N/A

Resolution WxH: 4096 x 3 px

Frame rate / Line rate: 66 kHz

ROI: Yes

Interface: Mini Camera Link (PoCL)

Sensors: 1xCMOS – Trilinear

Sensor Name: Custom

Optical Format: 30.72 mm

Cell Size WxH: 7.5 x 7.5 µm

Shutter type: Global shutter

Sensor Diagonal: 30.8 mm

Active Sensor Dimensions WxH: 30.8 mm

Camera Dimensions HxWxL: 62 x 62 x 71.8 mm

Weight: 410 g

Video Output: 8/10-bit

Lens Mount: F-mount or M-42×1 mount

Power Consumption: 7.80 Watt

Operating Temperature (ambient): -5°C to +45°C
