Description

SW-2001T-CL

The SW-2001T-CL is a high performance prism-based industrial RGB color line scan camera with three separate imagers for simultaneously capturing red, green and blue light. Through advanced prism technology it provides the best possible performance and precision for web-based or continuous imaging applications.

Specifications

Product Line: Sweep+ Series

Model: SW-2001T-CL

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible

Resolution: N/A

Resolution WxH: 2048 x 1 px

Frame rate / Line rate: 19 kHz

ROI: N/A

Interface: Camera Link

Sensors: 3xCCD RGB

Sensor Name: N/A

Optical Format: 28.7 mm

Cell Size WxH: 14.0 x 14.0 µm

Shutter type: Global shutter

Sensor Diagonal: 28.7 mm

Active Sensor Dimensions WxH: 28.7 mm

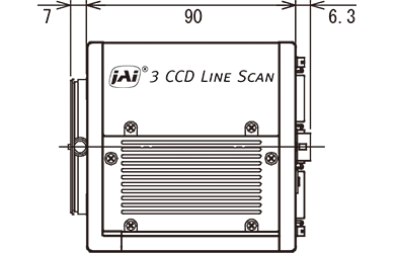

Camera Dimensions HxWxL: 90 x 90 x 90 mm

Weight: 830 g

Video Output: 8/10-bit

Lens Mount: F-mount or M52-mount

Power Consumption: 12.00 Watt

Operating Temperature (ambient): -5°C to +45°C
