Description

SW-4000T-10GE

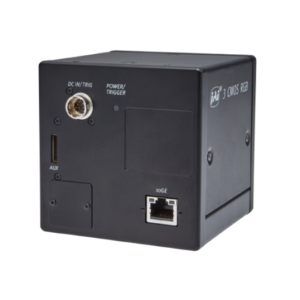

The SW-4000T-10GE is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a very fast, 97 kHz line rate thanks to a high speed 10 GigE interface. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.

Specifications

Product Line: Sweep+ Series

Model: SW-4000T-10GE

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible

Resolution: N/A

Resolution WxH: 4096 x 1 px

Frame rate / Line rate: 97 kHz

ROI: Yes

Interface: 10 Gbps GigE Vision

Sensors: 3xCMOS RGB

Sensor Name: Custom

Optical Format: 30.72 mm

Cell Size WxH: 7.5 x 7.5 µm or 7.5 x 10.5 µm

Shutter type: Global shutter

Sensor Diagonal: 30.8 mm

Active Sensor Dimensions WxH: 30.8 mm

Camera Dimensions HxWxL: 90 x 90 x 90 mm

Weight: 830 g

Video Output: 8/10-bit

Lens Mount: F-mount or M52-mount

Power Consumption: 13.70 Watt

Operating Temperature (ambient): -5°C to +45°C
