Description

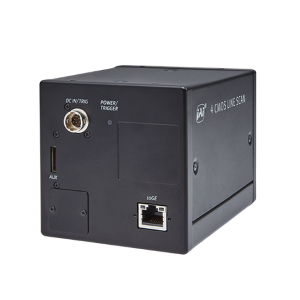

SW-4000Q-10GE

The SW-4000Q-10GE is a 4-CMOS prism-based industrial RGB/NIR color line scan camera with four separate sensors for simultaneously capturing red, green, blue and near infrared spectral wavebands. Besides delivering supreme RGB color data, the NIR image makes it possible to identify an even wider set of defects on inspected objects. The camera has 4,096 pixels per line and a fast, 72 kHz line rate thanks to a high speed 10 GigE interface. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color/NIR imaging applications.

Specifications

Product Line: Sweep+ Series

Model:Ç SW-4000Q-10GE

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible + NIR

Resolution: N/A

Resolution WxH: 4096 x 1 px

Frame rate / Line rate: 72 kHz

ROI: Yes

Interface: 10 Gbps GigE Vision

Sensors: 4xCMOS RGB/NIR

Sensor Name: Custom

Optical Format: 30.72 mm

Cell Size WxH: 7.5 x 7.5 µm or 7.5 x 10.5 µm

Shutter type: Global shutter

Sensor Diagonal: 30.8 mm

Active Sensor Dimensions WxH: 30.8 mm

Camera Dimensions HxWxL: 90 x 90 x 120 mm

Weight: 1000 g

Video Output: 8/10-bit

Lens Mount: F-mount or M52-mount

Power Consumption: 27.80 Watt

Operating Temperature (ambient): -5°C to +45°C
