Description

SW-4000T-MCL

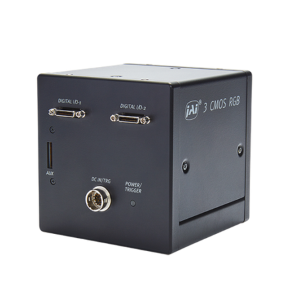

The SW-4000T-MCL is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a fast, 67.7 kHz line rate. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.

Specifications

Product Line: Sweep+ Series

Model: SW-4000T-MCL

Type: Line Scan

Color / Mono: Color

Light Spectrum: Visible

Resolution: N/A

Resolution WxH: 4096 x 1 px

Frame rate / Line rate: 66 kHz

ROI: N/A

Interface: Mini Camera Link

Sensors: 3xCMOS RGB

Sensor Name: Custom

Optical Format: 30.72 mm

Cell Size WxH: 7.5 x 7.5 µm or 7.5 x 10.5 µm

Shutter type: Global shutter

Sensor Diagonal: 30.8 mm

Active Sensor Dimensions WxH: 30.8 mm

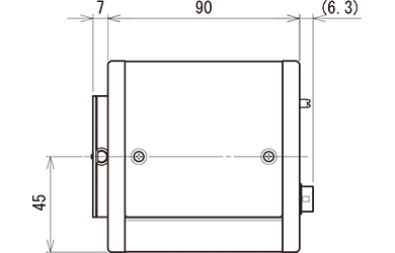

Camera Dimensions HxWxL: 90 x 90 x 90 mm

Weight: 765 g

Video Output: 8/10-bit

Lens Mount: F-mount or M-42×1 mount

Power Consumption: 9.30 Watt

Operating Temperature (ambient): -5°C to +45°C
